rapid response interior solutions
emergency rapid response interiors solutions

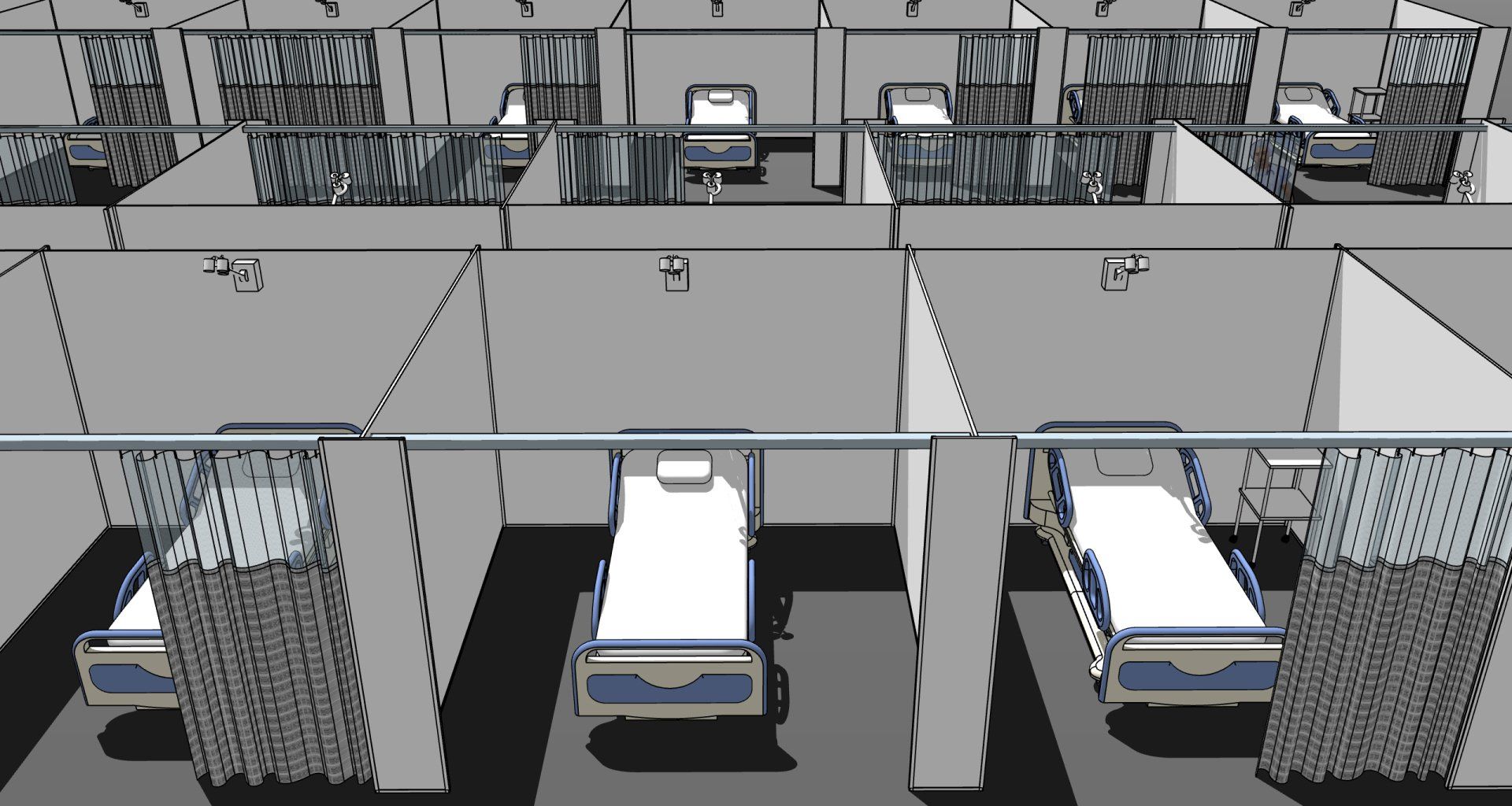

rapid response bed cubicles

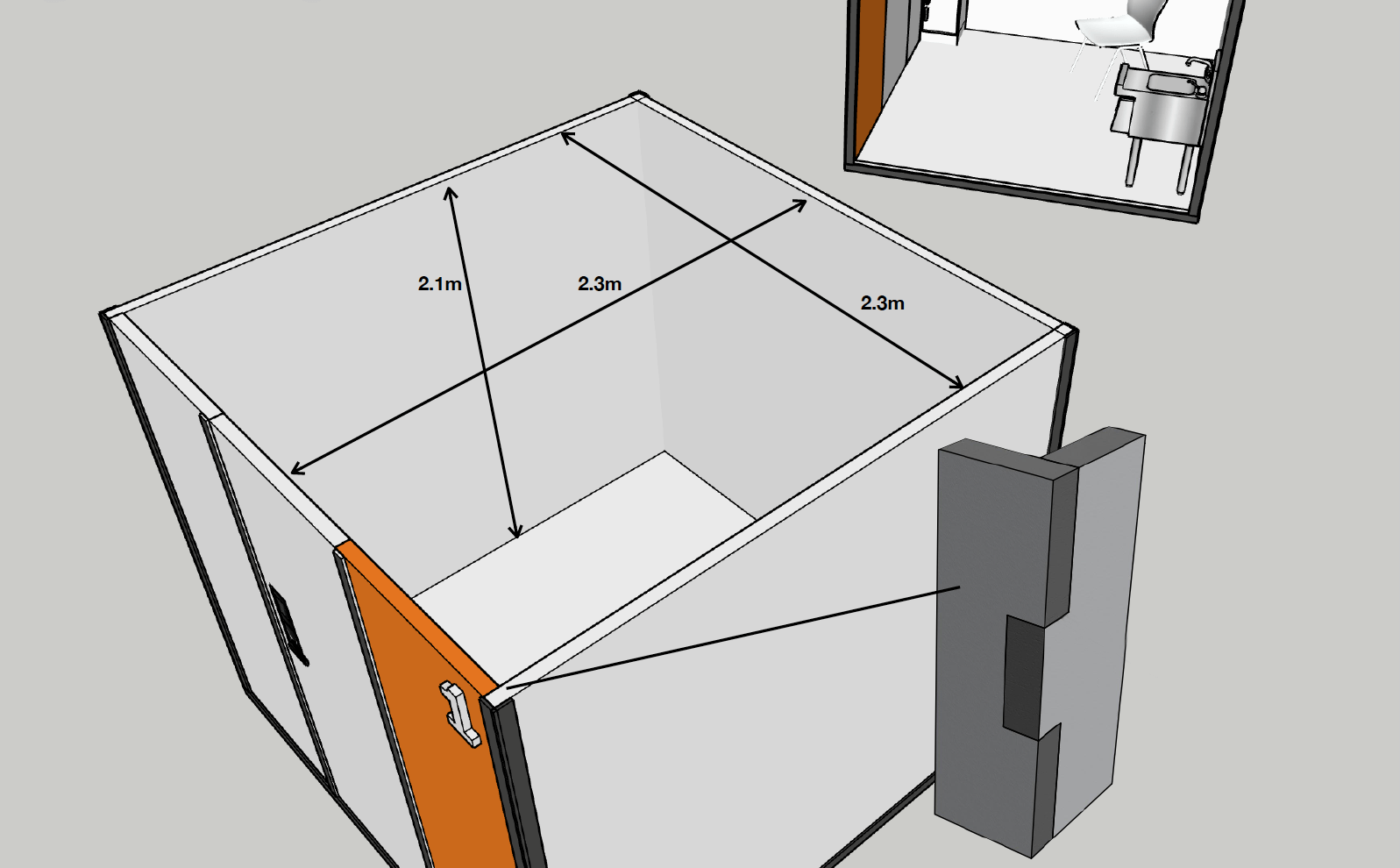

We are proposing a simple structure made from the most hygienic materials available.
Simple and clean joints are bolted securely for fast and safe erection and disassembly.
No joints along the wall surfaces help with cleaning down process. The product surfaces can take harsh cleaning every day. Some of the surfaces we are offering have a 10 year guarantee for surviving this kind of cleaning practice.
We are recommending using products using non-leaching, environmentally friendly, antimicrobial coatings. The antimicrobial coated materials we use provides a permanent molecular barrier that is attached to the surface by the following routes:
- Reacts with available functional groups to form covalent bonds
- Homopolymerizes to form a high molecular weight polymer
- Forms strong hydrogen bonds with ingredients in the treated material or surface.

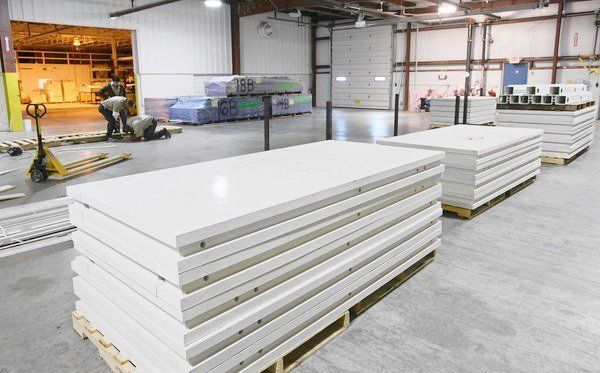

We can supply panels made from medical standard fibre reinforced performance polymers.

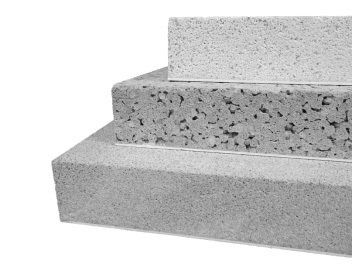

The structural core material is derived from recycled glass. Aside from this making the panel extremely sustainable, we found that glass gives us all of the performances needed not only in structure but also in resisting fire, mould, moisture, fatigue, impact, freeze thaw and thermal.
After extensive research found the glass core material to be the best material available to use in this application. We have a panel that under even extreme weather and natural disaster conditions is not compromised nor is its performance reduced.
| TYPE | LENGTH mm | WIDTH mm | HEIGHT mm |
|---|---|---|---|
| Hygienic Shell | 2800 | 2800 | 2050 |
| Antimicrobial Shell | 2800 | 2800 | 2050 |
| Antimicrobial Recycled Glass Shell | 2800 | 2800 | 2050 |
rapid response beds and cabinets

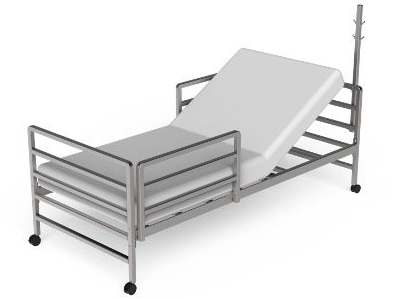

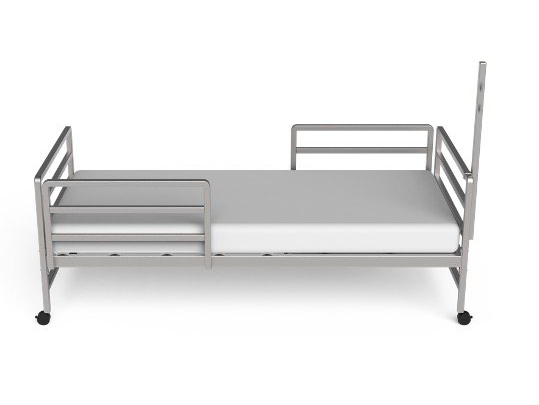

field beds with mattress
Bed solutions for field hospitals.
Field beds
- Delivered flat packed
- Install option is available.

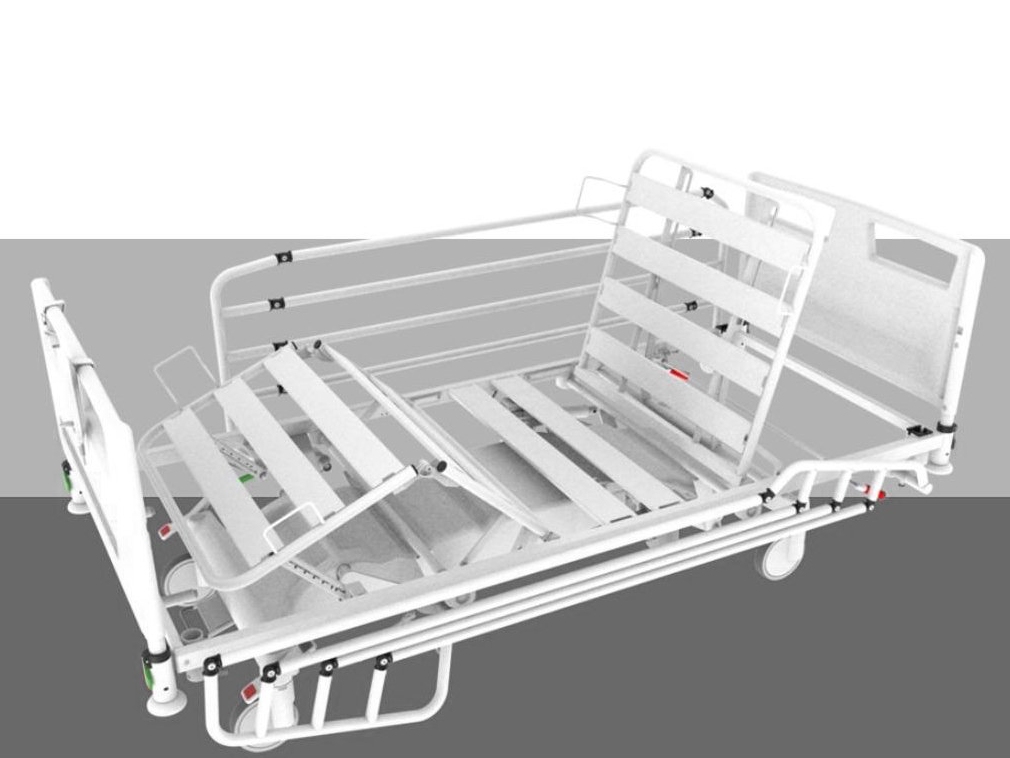

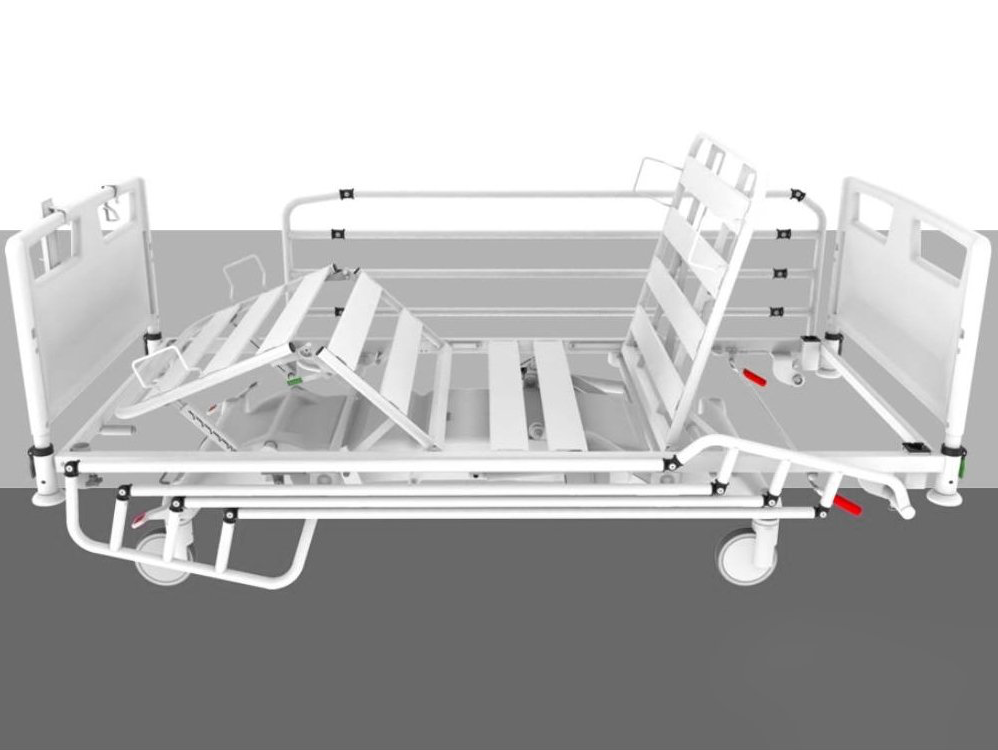

covid beds with mattress
With Radio-transparent HPL backrest for X-Ray examinations
| DETAIL | SPEC |
|---|---|
| Overall dimensions | 2140 x 970 mm |
| Sleep deck dimensions | 2000 x 850 mm |
| Safe working load | 250 kg |
| Sleep deck height | 395 – 785 mm |
| Autoregression back/leg | 120 mm / 60 mm |
| Back rest | 72° |
| Upper leg section | 40° |
| Lower leg section | 25° |
| Trendelenburg | 16° |
| Reverse Trendelenburg | 16° |
KEY FEATURES
- Four section sleep deck with electrical operation for the back rest and upper leg section.
- Electrical butterfly lift height adjustment mechanism.
- Trendelenburg and reverse Trendelenburg motion.
- Autoregression of back rest and upper leg section.
- Full length fold down side rails in epoxy coated steel.
- Patient handset commands with essential bed controls.
- Nurse control panel with full commands and lock out function.
- Manual CPR back rest release.
- Back rest in radio-transparent HPL ideal for chest X-ray examination.
- Pelvic and leg rest surface composed of durable steel supports.
- Bed frame and side rails coated with an antibacterial additive.
- Removable plastic moulded head boards with colour coded labels.
- High quality Linak® electric motorisation.
- Battery backup supply.
- Four universal accessory ports. Large medical grade castor wheels Ø150mm with centralised and directional brake lock.
- Bed extension function of 200 mm.
- Four corner bumper protection. Lightweight, robust and ergonomic.
- Comfortable patient mattress 140mm thick with removable waterproof cover.
- Equipped with drainage bag holder and a removable two hook IV pole.

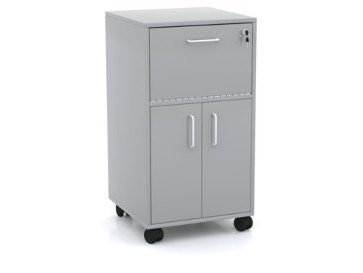

bedside cabinets
Storage solutions for field hospitals.
Bedside cabinets
- 490W x 490D x 910H mm 300mm
- Top hatch upper section with lock,
- Double door lower section with adjustable shelf
- Standard Identity 'D' handle to be used
- With castors (2x locking)
